Sheet Metal Fabrication Capabilities

 contact us

About our capabilities

Sheet Metal Fabrication Capabilities



Blackstone Advanced Technologies, LLC specializes in sheet metal fabrication, metal forming, metal cutting, welding, metal finishing, metal shaping and more! See below for more information.

Click Here to view our Facility Layout



PRESS ROOM:

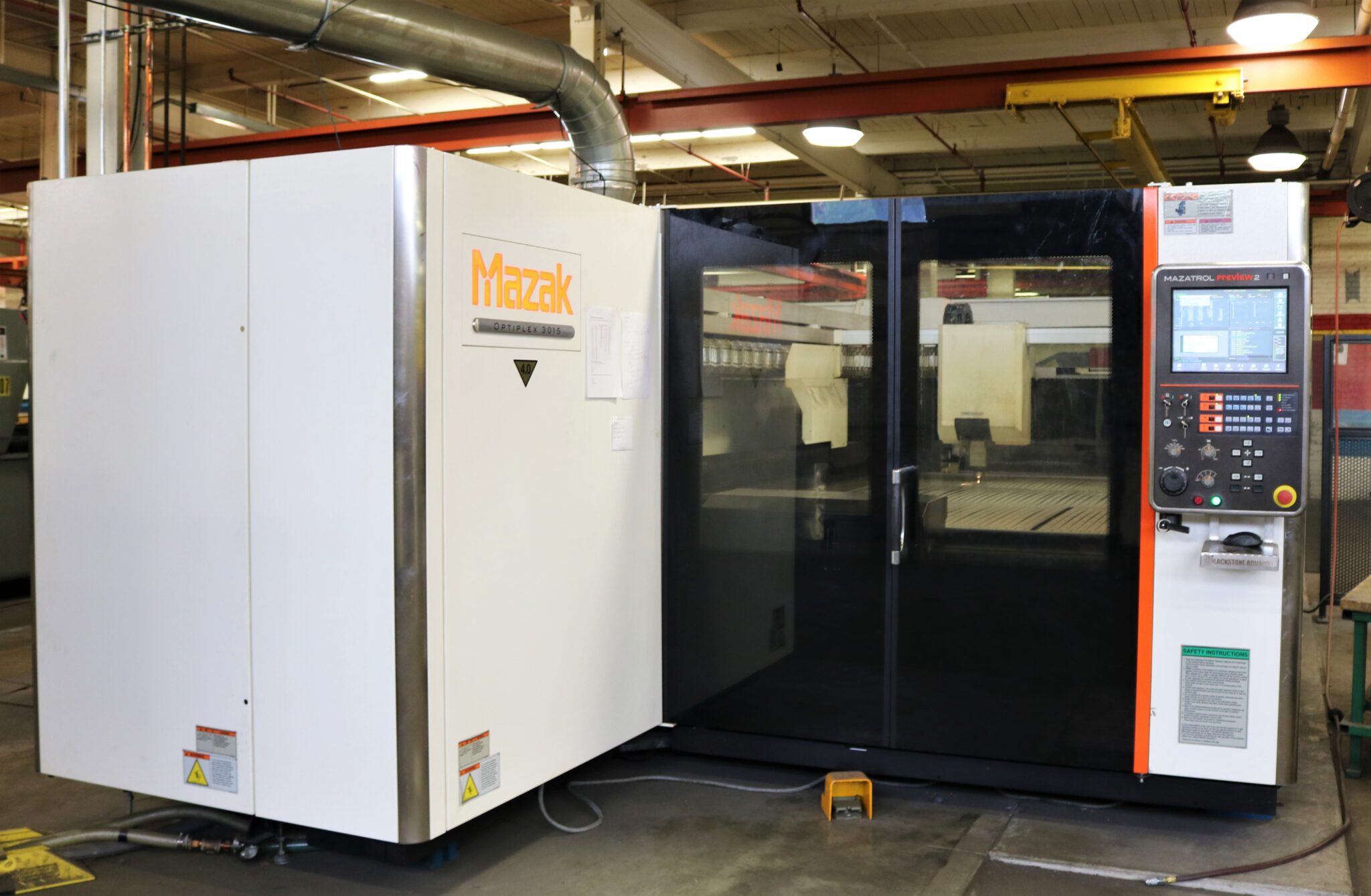

    • (5) 2000-watt CO2 lasers
      • Max sheet size is 72 x 144
      • Dual auto-changing pallets
      • We generally cut aluminum up to 1/4″, mild steel up to .5″ and stainless steel up to 3/8″ thick
    • (1) CNC turret punch press
      • 55 punching tons
      • Max individual tool size: 4.5″ diameter
      • Max sheet size: 60 x 72 (144 with repositioning)
      • 44-station turret with 2 auto index stations
    • (2) 10′ shear
      • Up to ¼” thick capacity
      • One has a CNC front gauge
    • (5) CNC hydraulic press brakes
      • Ranging from 130 tons to 320 tons
      • Max bed length: 14′
      • Lift assist arms on 320-ton machine
      • Automatic bed deflection compensators.
      • Hardened, ground, and segmented precision tooling with quick-change clamps
    • (2) Conventional hydraulic press brakes
      • With 2 axis CNCs.
      • 120 tons, 10′ bed
    • Mechanical press brakes
      • Ranging from 100 to 230 tons
        • 10′-14′ bed lengths
        • All outfitted with NC backgauge controllers
  • (2) Straight-sided mechanical presses
    • 300 tons
  • (3) Mechanical punch presses
    • Ranging from 20 to 40 tons
  • (1) 4′ bending roll
    • Up to 1/4″
  • (1) Sheet seam-welder for making oversize sheets



WELDING:

    • (1) Seam welder
      • Seam length of 96″
      • Clamping length of 106″
      • 2 mandrel configurations
    • (2) Sciaki spot welder
      • 250 KVA
      • 48″ throat depth
      • 8″ gap
      • Solid-state controller
      • 440 volts
      • 3 phase
    • (17) Taylor Winfield spot welders ram and press types
      • Up to 100 KVA
      • Electronic controls

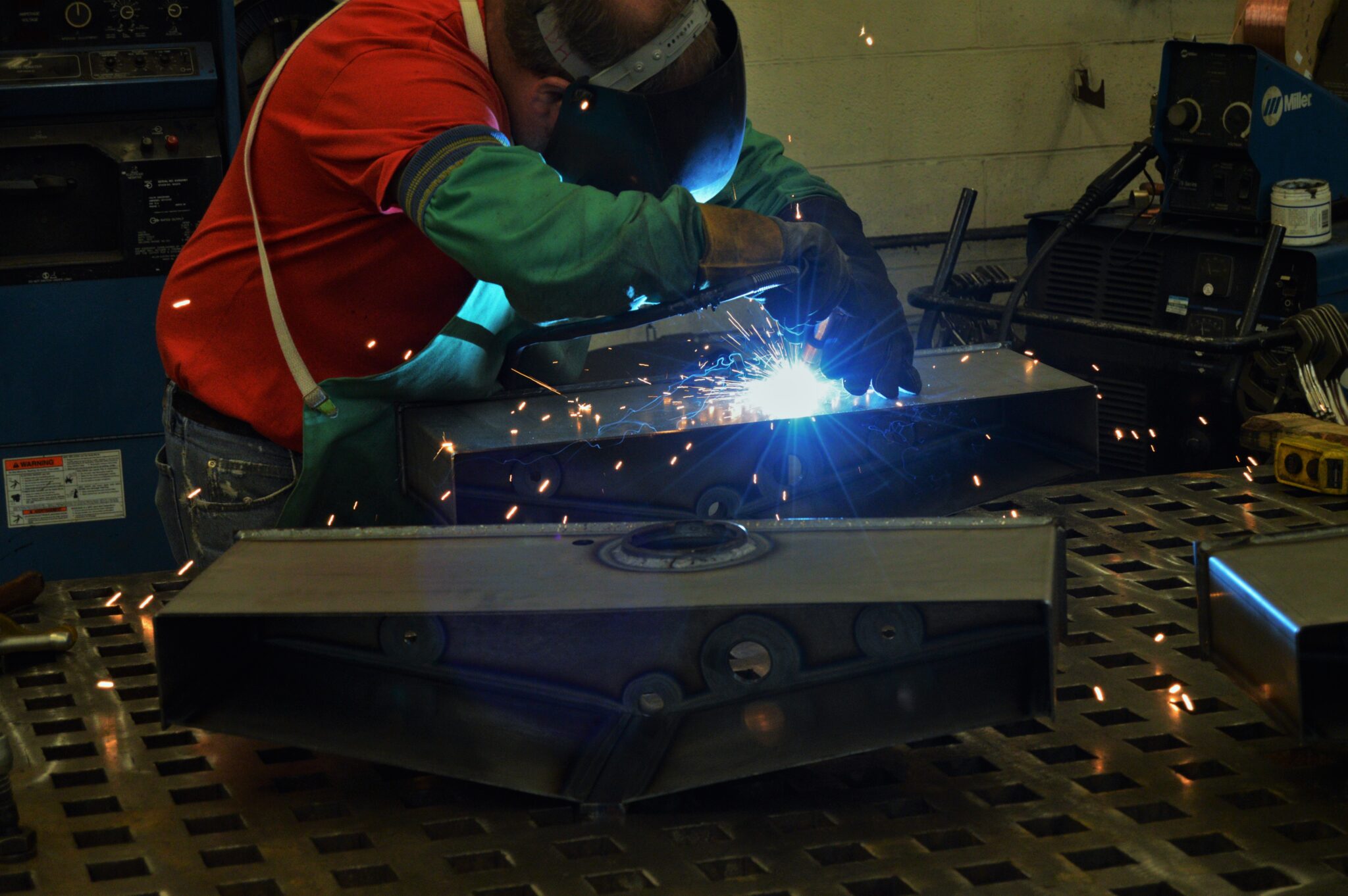

    • (30) MIG welders
    • (16) TIG welders
    • 9 SST welders
      • For spatter reduction on stainless steel
  • Projection weld stud welders
  • (3) Push/pull arc weld guns
  • (2) Plasma welder-cutters
  • (4) 38 KVA portable/hanging spot welders
  • (8) Variable-size grid tables



SANDING, DEBURRING & POLISHING:

  • (1) 30″ Timesavers belt sander
  • (1) 19″ Timesavers belt sander
  • (2) Belt sanders to 14′ 0″
  • (1) Falls metal edge deburring machine
  • (2) Sweco 4′ vibratory deburring machine

PAINT COATING AND FINISHING:

  • Large weldment wash booth
      • 12′ x 28′ x 12′
  • Large weldment wet spray booth
    • 12′ x 28′ x 12′
    • Large wet spray paint booth can comfortably accommodate weldment
      • 25’L x 14’W x 14’H
  • (2) 5-stage wash & phosphate coating system
    • Accommodates 4′ x 8′ x 9′
    • Accommodates up to 1,500 lbs.
  • (5) Batch paint/powder booths
    • 5′ x 10′
  • (2) Baking ovens
    • 36′ x 16′ x 10′
  • (8) Gema Volstatic powder applicators



MISCELLANEOUS FABRICATION EQUIPMENT:

    • (2) Frame-straightening stations
      • With leveling plates
    • (35) Adjustable height lift tables
    • (2) Bracker riveting machines
    • (1) Sheet metal nibbler
    • (1) Muller semi-automatic stretch machine
    • (5) Hydraulic dock levelers for shipping
    • Fully equipped shipping department
      • (9) Shipping and receiving docks
      • Capable of constructing skids and crates to customer specifications
  • Fully equipped tool room
      • Capability to design, build, & maintain close-tolerance tooling
  • Bus-duct wiring
  • High-intensity lighting
  • Complete sprinkler system
  • Gas-fired boilers

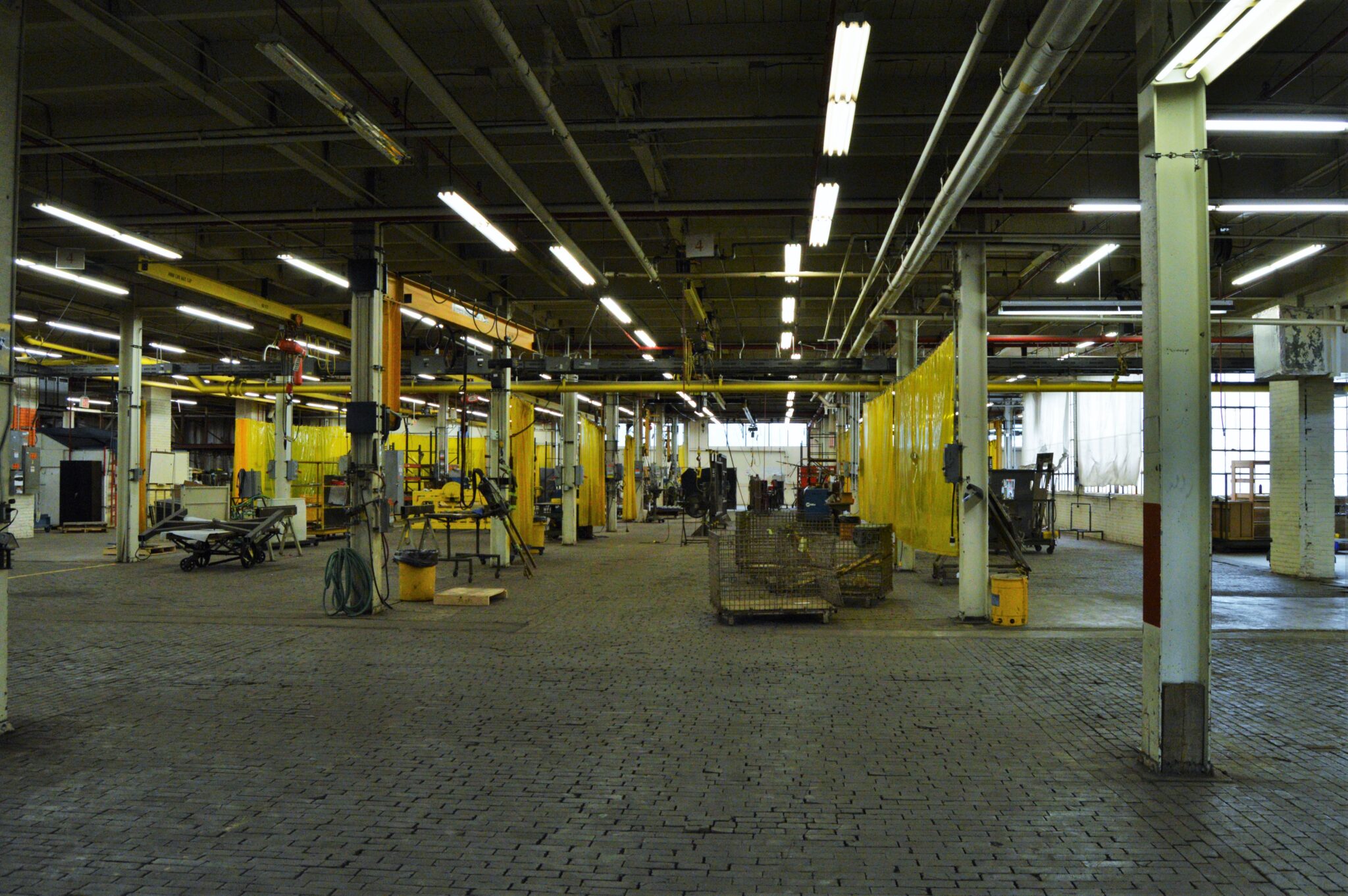

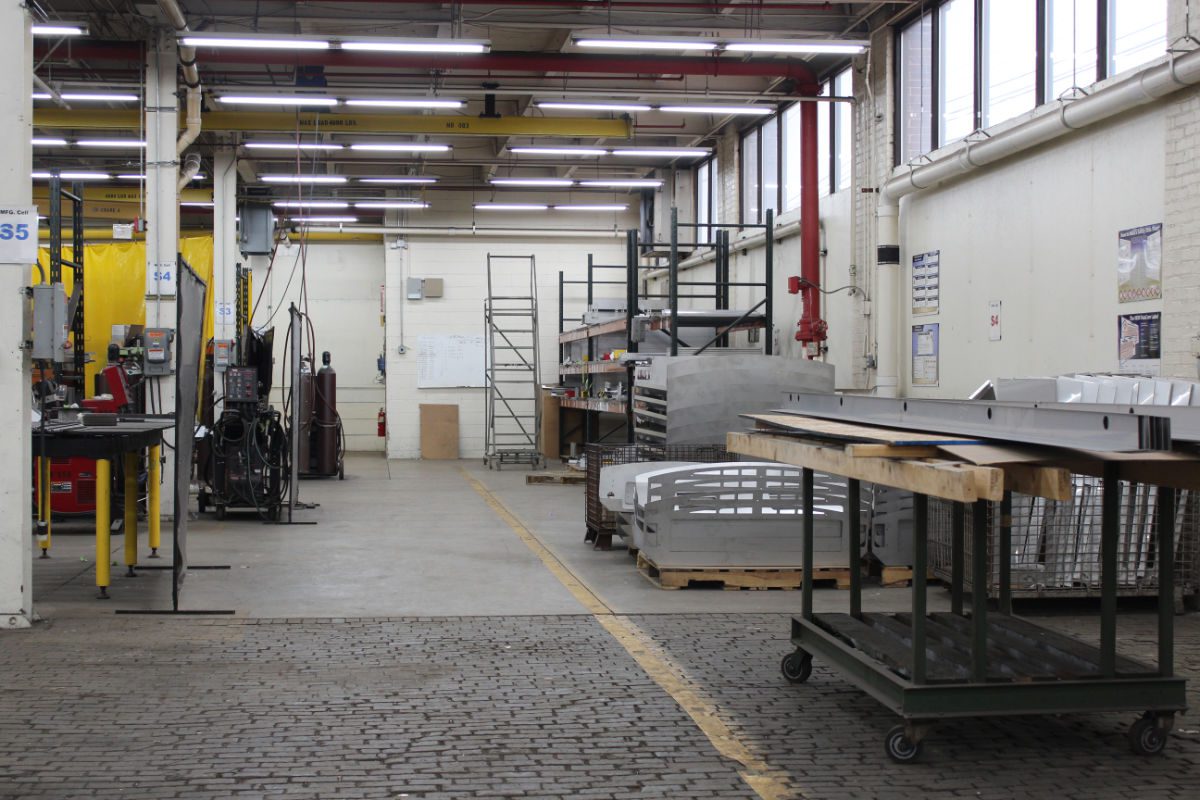

  • 100,000 sq. ft. of plant area
    • Serviced by 5-ton overhead crane system
