Trumpf TruLaser 3040 Fiber

The fast machines for all your cutting tasks

The TruDisk solid-state laser enables the processing of non-ferrous metals and provides you with a productivity benefit in thick and thin sheet. BrightLine fiber guarantees the highest edge quality and facilitates part removal. Numerous other functions ensure the highest reliability and performance possible.

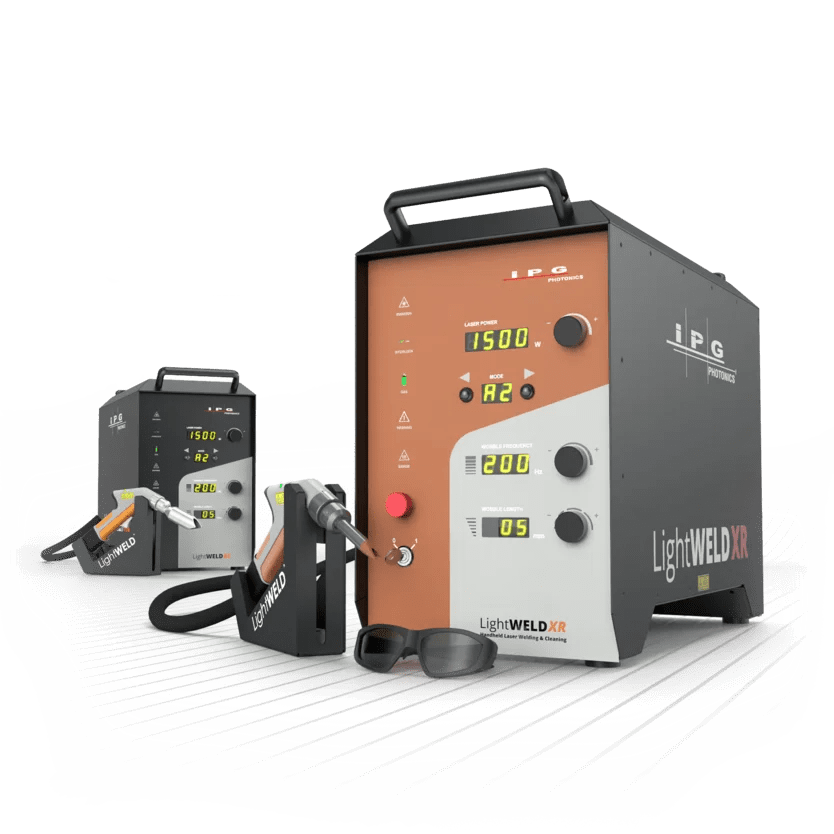

IPG LightWeld 2000XR

Handheld Laser Welding & Cleaning Systems

LightWELD enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.

PMI-20 CNC Auto Miter Upcut Saw

The PMI-20 CNC Auto Miter Upcut Saw is a fully automatic upcut miter saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).

Fully Automatic Operation
7.5 HP Saw Motor
Servo Controlled, Powered Saw Head – 45 degrees to the left and right
Built-in Automatic Pusher System – Servo Controlled
Touchscreen Control
3000 RPM Saw Blade Speed
Full Control of the Feed Rate – Air over Oil Feed System
Vertical and Horizontal Clamping
Adjustable Clamping Pressure
20” Diameter Saw Blade
5.9” Maximum Sawing Height
11″ Maximum Sawing Width

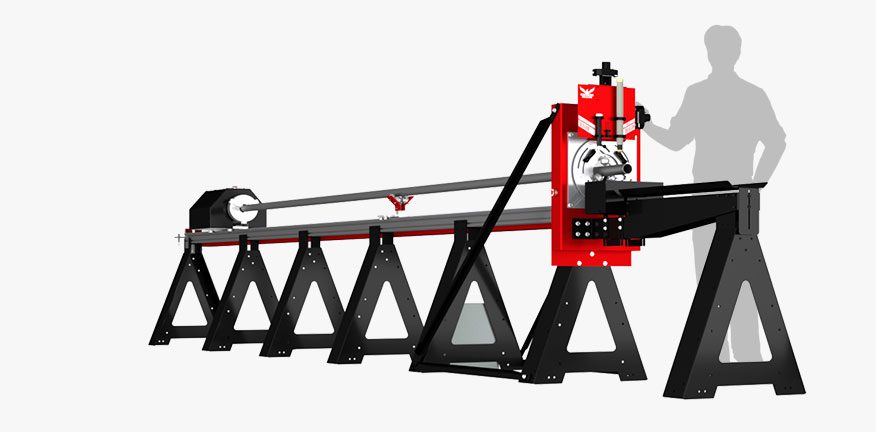

Dragon Tube and Pipe Plastma Cutting Machine

The Dragon A400 CNC tube and pipe plasma cutter easily marks and engraves on tube and pipe to make CAD/CAM designs a reality.

Fabricates any design with holes and end cuts
Marks all bending locations, rotations, and degrees on the tube
Time-saving tool for tube and pipe processes
Industry leader with over 1,000 machines in the field

Trmpf TruBend 5130

The TruBend 5130 delivers 110 US tons of pressing force and 127”
of bending length capacity with excellent speed, precision, and
industry-leading safety features.

Press force 292 US tons / 1300 kN
Bending length 127” / 3230 mm
Width between columns 133” / 2690 mm
Usable open height with manual tool clamp 15.15” / 385mm

THG Automation Fronius Welding Robot

The push system is an air-cooled system that is great for welding carbon steel, stainless steel and can push aluminum.

The push system includes these Fronius features:

• TPS 400i Power Source with 1000 jobs, Teach Mode, Job Editor, and more
• Wire Feeder
• Spool Holder or wire barrel kit (optional)
• Push Torch

Each system includes the Universal Robots UR10e 12.5 kg payload robot with the THG Automation interface software, which includes all the features listed above.

Included MIG welding processes:

• Synergic Standard
• Synergic Pulse
• Synergic Syncro-Pulse
• PMC
• PMC mix

Trmpf TruBend 2100

The TruBend 2100 delivers 110 US tons of pressing force and 120”
of bending length capacity with excellent speed, precision, and
industry-leading safety features.

Press force 110 US tons / 1000 kN
Bending length 120” / 3060 mm
Width between columns 133” / 3384 mm
Usable open height with manual tool clamp 13.75” / 350 mm
Maximum distance between the lower edge of the
press beam and the upper edge of the machine
table
18.5” / 470 mm
Maximum distance between the lower edge of the
press beam and the upper edge of the machine
table (increased installation height option)
24.4” / 620 mm
Press beam tilt ± ¼” / ± 6.5 mm
Table width 4” / 100 mm
Working height (minimum/maximum)1) 41.3” – 42.1” /1049 mm – 1069 mm

Skat Blast 985 Cabinet

The Skat Blast 985 Cabinet is manufactured to blast long items.

Full 72″ wide inside work area to handle drive shafts, bumpers, spoilers, rockers, ground effects, or any wide item that needs blasted. Dual glove stations and one center-mounted C-35-M Power Gun keeps those long parts always within reach.

Overall size -74″w, 30″d, 64-1/2″h. Work area – 72″w, 28″d, 28″h. Two 11 gauge steel doors with welded angle-iron framework, 18 ga steel body. Requires 10-15 cfm @ 80 psi. 125 psi max. 8 ft vac hose and Vac-50 HEPA Vacuum.

HEM Saw VT100HLA-60 CTS

A vertical, Metal-Cutting Production Band Saw

Capacity: 18″ W x 20.75″ H @ 90 degrees
18″ W x 14.25″ H @ 45 degrees (L)
18″ W x 14″ H @ 45 degrees (R)
18″ W x 9.75″ H @ 60 degrees (L)
18″ W x 6.75″ H @ 60 degrees (R)
Blade: 1.25″ x 15’6″ x .042″
Arm Cant: 4 degree *Removable
Bar-Feed: 0-48″ Stroke Hydraulic Motor
Motor: 5 HP
Hydraulics: 2 HP

Trumpf TruBend 7036

New to the family the Trumpf Trubend 7036. The ergonomic high-speed machine bends small and medium-sized parts under the best working conditions, saving us space for every production system. In addition to the high level of ergonomics and user-friendliness, due to the direct drive and the automatic angle measuring system, you achieve a high output at a very high level of quality.

CINCINNATI CL-940

The CL-900 Series Fiber Laser System offers high speed cutting on thinner materials and lower operating costs. The Human Machine Interface (HMI) is intuitive and enables operators to produce good parts. In a work environment where operators often switch from machine to machine, it is key to have a control where one can be cutting parts fast and accurately. The CL-900 control excels in this area. The CINCINNATI HMI has a touch screen display, easy to understand buttons and a full size keyboard. Using the Windows Operating System, the operator feels right at home. A web cam is available for easy monitoring of the cutting process. Rather than using cumbersome tech tables, the CL-900 uses Dynamic Power Control (DPC), which computes optimum power and the fastest possible cutting speed for any material on the fly..

XSHARP GRINDER

The XSharp Grinder is a tool sharpener that is fast, simple and precise. Take operator time and grinding skills out of the equation with its automation process. The XSharp uses an automated height detection feature to locate the top of the tool before grinding.  Height detection is accurately done with a precision gear and ball screw. Many more features work together to ensure maximum speed and accuracy. This extends our tool life resulting in a great product for you. Need some tools sharpened? Contact us as we offer tool sharpening services.
